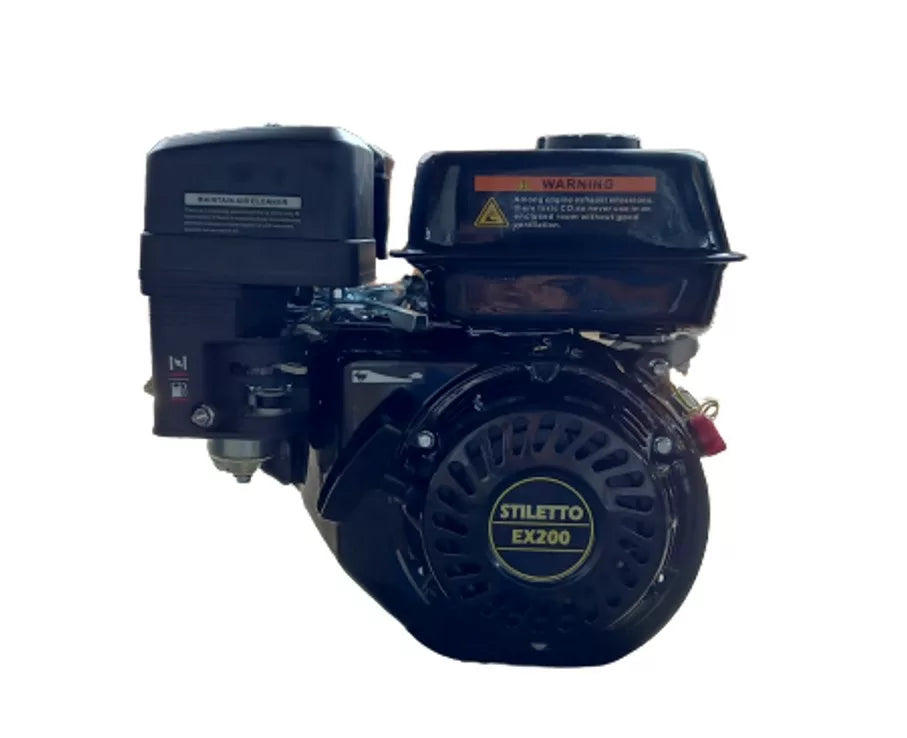

196 cc Stiletto EX200 4-Stroke Horizontal Engine, 4.1

196 cc Stiletto EX200 4-Stroke Horizontal Engine, 4.1 kW

Turfmaster p/n: STI-EX200

Description: Engine Horizontal shaft 196cc

Brand: Stiletto

Description: Engine only

• Displacement: 196cc
• Shaft size: 19mm
• Rated Power (kW/3600rpm): 4.1 kW / 6hp
• Max. torque (N.m/rpm): 12.4/2500
• Fuel Consumption (g/kW.h): ≤ 395
• Idle Speed: 1800 ± 150
• Speed Fluctuating Ration: ≤ 10%
• Noise (≤): 70dB(A)
• Bore x Stroke (mm): 68 x 54
• Compression Ratio: 8.5:1
• Lubricating Mode: Splash
• Starting Mode: Recoil start
• Rotation: Anti-clockwise (from P.T.O. side)
• Valve Clearance:
• Input valve: 0.10mm – 0.15mm,
• Output valve: 0.15mm – 0.20mm
• Spark Plug Clearance: 0.7mm – 0.8mm
• Igniting Mode: Transistorized Magneto Ignition
• Air Cleaner: Semi-dry, Oil bath, Foam Filter
• Length Dimension mm: 312
• Width Dimension mm: 376
• Height Dimension mm: 335
• Net Weight (kg): 16 (19kg)

Compare: Briggs Honda Kohler Robin Yamaha Kawasaki Loncin Power Pro Hoffman Rato Turner Morris Mac Afric.
