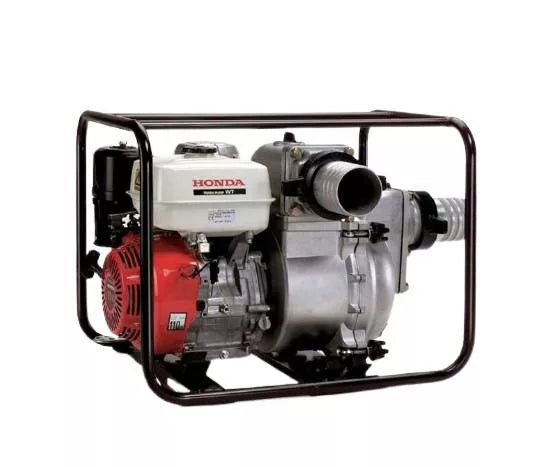

Honda 100mm 4″ Trash Pump Water Pump GX390

Honda Trash Pump 100mm / 4″ with Honda GX390 Engine – WT40XK3D solids 27mm

Turfmaster p/n: HWT40XK3DX

Engine made in Japan

Open Frame Trash Pump. Honda water pumps and trash pumps are specially designed for job sites and applications where high volume trash water capacity is required.

Honda WT series pumps offer highly desired features including, easy-starting and reliable OHV commercial-grade engine, rugged full frame protection, quick release clean-out and durable silicon carbide mechanical seals.

Other Honda WT features include a unique conical impeller for improved priming and durability, replaceable stainless steel wear plate for extended life and convenient multi-tool for on-site servicing and clean-out.

Features:

• Heavy-duty 4″ construction trash pump
• Easy starting Honda OHV commercial engine
• 423 gal./min capacity
• Solid handling capability up to 27mm
• Cast iron volute and impeller
• Quick clean out port

Specifications:

• Engine:  GX390  8.1 Kw ( 11hp)  4-stroke OHV single cylinder
• Displacement cc:  389 cc
• Start: Recoil Start
• Fuel Type:  Unleaded
• Tank Fual Capacity: 6.1 Liters
• Fuel Consumption:  3.7 L/h at 3,600 rpm
• Continuous Operating Hours: 1.5 hours run time per tank approx.
• Solid handling capability:  up to 27 mm
• Total Head: 25 m head max, 36 psi (max pressure this pump will pump to)
• Suction Head:  8 meters (this is the maximum depth that this pump will suck water from)
• Maximum Pumping Capacity: 1640 liters / minute (41655 liters/hour)
• Suction Port Diameter : 100mm ( 4″) BSP threaded inlet
• Discharge Port Diameter:  100 mm ( 4″) BSP  threaded outlet
• Self Priming Pump: Yes
• Self Priming Time (AT 5m):  150 sec at 5m
• Pump Type:  Trash Centrifugal Self-priming
• Volute: Rigid Mounted Cast Iron w Stainless Wear Plate
• Impeller: Conical Cast Iron
• Mechanical Seal (Pump case impeller): Silicon Carbide
• Pressure:  3.0 bar pressure
• Cast iron volute and impeller
• Quick clean out port
• Aluminum body, BUNA seals
• Oil Alert:  Yes  (Low oil cut out system)
• Dimensions: 735 x 536 x 564
• Dry Weight (KG): 78
• Mounting Type: Rubber
• Frame: Roll frame with rubber feet
• Hose Band/Strainer: Yes (No Hose)
• Framed with carry handle and light enough for 1 person to carry.

Warranty 1 year  Limited  (subject to annual service)
