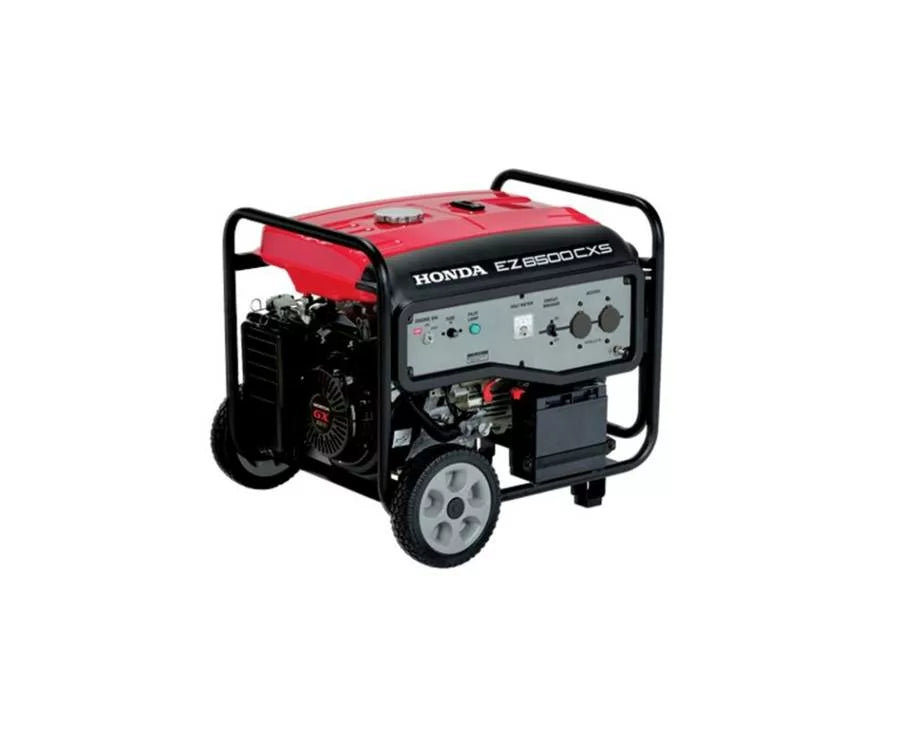

Honda EZ6500CXS Generator max 5.5kVA AVR Petrol

Honda EZ6500CXS durable and powerful generator, max 5.5kVA Open Frame Generator with AVR

Honda

Turfmaster p/n: HEZ6500CXSMX

The Honda EZ6500CXS durable and powerful generator.

Design

Generator:

• AC Frequency (hz): 50
• AC Output Voltage (V): 220
• Rated AC Output (kVA): 5
• Max AC Output (kVA): 5,5
• Rated Current: 22.7A
• DC Rated Voltage: 12v
• DC Rated Current: 8.3A
• Continuous Operating Hours (hrs): 5,8

Engine:

• Model: GX390
• Type: Air-cooled, 4 stroke, OHV, single cylinder
• Displacement (cc): 389
• Ignition System: Transistorized Magneto
• Starting System: Recoil and/or Electric ( sold without battery )
• Fuel Tank Capacity (l): 15,5

Dimensions and Weight:

• Dimensions (L x W x H) (mm): 844 x 533 x 571
• Dry weight (kg): 87

Features:

• Noise Level: ±72-78dB
• Eco Throttle: No
• Oil Alert: Yes
• Fuel Gauge: Yes
• Large Capacity Fuel Tank: Yes
• Capacity Air Cleaner: Yes
• Large Capacity Muffler: Yes
• Large Capacity Fuel Cleaner: No
• Accessory AC Plug: Yes
• Automatic Voltage Regulator: Yes
• Voltmeter: Yes
• AC Circuit Breaker: Yes
• DC Circuit Breaker: No
• Parallel Operation Connection Ports: No
• Parallel Operation Connection: Cable
• 2/4-Wheel Dolly Kit: Yes
• Electric Starter: Yes (Require Battery)
• Battery Tray Kit: Yes
• Battery: No
• Pilot Lamp: N/A
• Receptacle 1: N/A
• Receptacle 2: N/A

Engine Oil

Engine oil is a major factor affecting engine performance and service life. Non detergent oils and 2 stroke engine oils will damage the engine and are not recommended. Check the oil level BEFORE EACH USE with the generator on a level surface with the engine stopped.

Use a high quality detergent oil classified “For Service SF, SG, SH, SJ” 4-stroke motor oil. Use no special additives with recommended oils. Do not mix with gasoline.

• Air cooled engines run hotter than automotive engines. The use of no-synthetic multi-viscosity oils (5W-30, 10W-30, ect ) in temperatures above 40 °F (4°C), will result in higher than normal oil consumption. When using multi-viscosity oil, check oil level more frequently
• SAE30 oil, if used below 40° F (4°C ) will result in hard starting and possible engine bore damage due to inadequate lubrication.
